Главная страница /Продукция/Настольный маршрутизатор CNC/Hotels 4*8 FT Woodworking CNC Router For Plywood MDF Wood Acrylic 1325 CNC Wood Router Machine

Hotels 4*8 FT Woodworking CNC Router For Plywood MDF Wood Acrylic 1325 CNC Wood Router Machine

1 Set
MOQ
Hotels 4*8 FT Woodworking CNC Router For Plywood MDF Wood Acrylic 1325 CNC Wood Router Machine
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Condition: New
Range of Spindle Speed(r.p.m): 6000 - 24000 rpm
Positioning Accuracy (mm): 0.01 mm
No. of Spindles: Single
Working Table Size(mm): 1300×2500
Machine Type: CNC Router
Travel (X Axis)(mm): 1200 mm
Travel (Y Axis)(mm): 2500 mm
Repeatability (X/Y/Z) (mm): 0.01 mm
Spindle Motor Power(kW): 3.0KW/3.5KW /5.5KW/ 6KW/ 7KW
CNC or Not: CNC
Place of Origin: Shandong, China
Фирменное наименование: YAONENG
Voltage: 220V/380V
Dimension(L*W*H): 2000*3000*1700mm
Power (kW): 3.5
Weight (KG): 1200
Control System Brand: DSP
Warranty: 1 year
Key Selling Points: Multifunctional
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Farms, Home Use, Retail, Printing Shops, Construction works , Advertising Company
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 year
Core Components: Motor, PLC, Gearbox
Transmission: Ball Screw
Product name: CNC Wood Working Machine
Control system: Nc-studio/Mach3/DSP Control System
Inverter: BEST
Working area: 1300mm*2500mm*200mm
Motor and driver: Stepper Motor Leadshine Driver
Working table: Aluminum T-Shot
Spindle power: 3.5kw/4.5kw/5.5kw Air Cool
Key words: Cnc Router Wood Cnc Machine
Guide rail: Taiwan Hiwin Square Guide Rail
Local Service Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile
After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service
Showroom Location: Egypt, Canada, Turkey, France, Viet Nam, Philippines, Brazil, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Morocco, South Korea, Chile, Bangladesh, Ukraine
Marketing Type: New Product 2020
Сертификация: CE
Основная информация
Place of Origin: Shandong, China
Фирменное наименование: YAONENG, DSP
Сертификация: CE
Оплата и доставка Условия
Packaging Details: Wooden box for1325 cnc router wood carving
Характер продукции

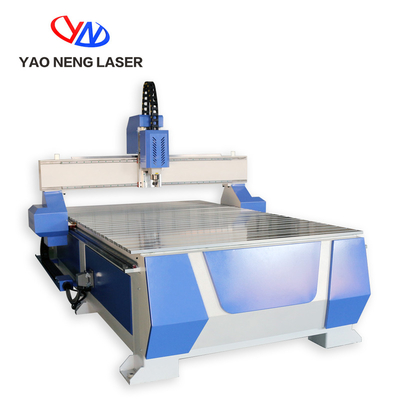

Yaoneng 1325 Woodworking cutting engraving machine wood CNC router
Product Description
wood cnc router machine
Yaoneng 1325 is common type woodworking cnc router machine with high performance configuration.
The engraving and cutting work on hard or thick materials could be done easily. Most working need
on various materials can be met as a typical of multi-functional machines.
Machine Features:
1. Taiwan HIWIN linear square guide, four-row double-row ball slider, large bearing capacity, stable operation and long service life. Imported ball screw, high precision, high positioning accuracy of tool position;
2. Adopt high-precision rack drive, fast speed and high precision.
3. A variety of different operating systems can be freely selected to meet customer needs.
4. Strong software compatibility, support CAD/CAM design software such as Type3 / Actcam / Castmate / Wentai;
5. Adopt high-speed stepper motor drive, y-axis uses dual motor drive, combined with a powerful cutting spindle, the engraving speed is faster.
Model
YN 1325
Engraving area (mm)
1300*2500*200
Working Form
Full-automatic
Spindle Power
3kw,4.5kw,6kw,7.5kw,9kw,etc(optional)
Spindle
Air cooling spindle or water cooling spindle(optional) Brand:Italy HSD,CS,other brands(optional)
Spindle Rotate(rpm)
6000~24000
Motor Driver
Stepper motor 450 ,Leadshine drive 860H
Machine Structure
Industry square tube structure
Transmission System
Taiwan TBI ball screw high accuracy gear rack
X,Y,Z Rail
Taiwan square guide rail
Working table
Gantry moving method, Vacuum  working table
Mechanical Accuracy
<0.03/300mm
Engraving Speed(mm/min)
6000~15000mm/min
Lubrication
Manual oil lubrication
Inverter
BEST Inverter
Data Transmission
USB or PC connect
Support Format
G code or HPGL
Working Voltage
AC220V /50Hz or 380V
Support Format
G Code or HPGL
Control System
DSP A11
Range of Application
Woodworking relief engrave ,Cutting , Hollow
Machine Net Weight
1200KG
Detailed Images
Product Sample
The machine is a desktop machine, the entire body is cast iron structure, has a strong rigidity
The machine can handle many different materials, such as: wood, acrylic, MDF, plywood, ABS, OSB, foam, etc., but the most important thing is for wood cutting.
It is widely used in mold, furniture, stone, gifts, and decoration industries.
The machine can carry out engraving, milling, cutting and drilling work.
Product packaging
1. Outside package: Standard marine export plywood case.
2. inner package: Stretchy film and plastic film for humidity.
3. We can package according to your requests.
Our Company
Of the training
We offer free training in our factory, welcome foreign friend come here to study the machine.
engineer oversea service is aviliable if you like, and Engineers will be trained user programming, operation, processing and
routine maintenance.
We will offer Multi-language software and operation CD, Detailed User Manual together with machine for your reference.
Of on line service
24 hours (all days) technical support by call ,e-mail, skype or computer remote control service by engineer.
Of guarantee time
1 year guarantee for whole machine, if any problem of components, we will express you good ones. As we have strictly ex factory inspection, so there in no any problem of the machine. lifetime maintenance, charge the appropriate fee and the cost of replacement parts.
FAQ
Q1 : I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using cnc router,then let us give you perfect solutions and suggestions.
Q2: When i got this machine, but i did not know how to use it.What should i do?
We will send video and English manual with the machine.If you still have some doubts, we can talk by telephone or skype.
Q3: If some problems happened to this machine during warranty period,what should i do?
We will supply free parts in machine warranty period if machine have some problem.While we also supply free after-service forever,so any doubts,just us know,we will give you solutions in 30 minuets.
Q4: What is the MOQ?
MOQ for our products is 1 set machine,we could send it to your country if you tell detail information about your country port.
